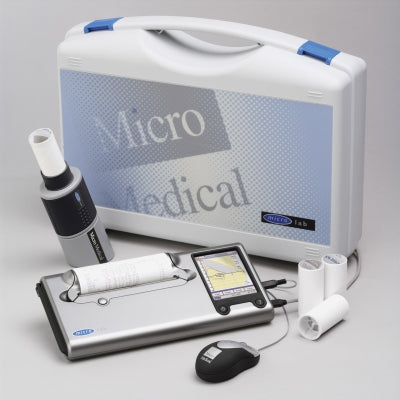

MICROLAB MK8 SPIROMETER

ML3500Mk8S Micro Medical NEW Generation MicroLab Mk 8 Spirometer with colour touch screen and new Spirometry PC Software MicroLab Mk 8 spirometer featuring a high resolution colour touch screen,on-screen textual help files and integral high resolution easy load fast printer Optional SPO2 module available Highly portable and beautifully designed, the new generation MicroLab has been developed for the professional. Employing Micro Medicalﾒs acclaimed precision GOLD STANDARD Digital Volume Transducer (especially suited to measuring very low flow rates in patients with COPD) the instrument has a wide angle, high-resolution colour touch-screen. All the unit's features can be easily accessed by simply touching the chosen functionﾒs corresponding icon. This, together with fast textual data entry using a stylus or the optional MicroMouse makes the systemﾒs use highly intuitive. A quiet and very fast printer with easy-load paper mechanism is integrated. The printout can be fully customised and can also be linked directly to external printers Equipped with many advanced functions the MicroLab is fully compatible with Spirometry PC Software and meets all International standards for performance and accuracy. There are over 40,000 Micro Medical MicroLab Spirometers in use around the world; this new generation model is truly the most advanced portable Spirometer Gold Standard Transducer The Gold Standard transducer from Micro Medical gives the most precise volume and flow measurements for Asthma and COPD patients. Especially effective at low flows, it complies with all current ATS and other recognised international standards for accuracy. This means that Micro Medicalﾒs world beating spirometers are the definitive benchmark for accurate respiratory measurement bar none *Features

• High definition colour touch-screen



• Simple screen icon interface using stylus or optional MicroMouse



• Fast on-screen textual entry enabling comments and report writing



• Fast, quiet printer with easy load paper mechanism



• Fully customisable printout format



• Direct connection to external Hewlett Packard printers. Click here to view a list of compatible printers



• Unique contextual Help Screens (language selectable) with dedicated Help Button



• 41 inspiratory and expiratory indices measurable



• On-screen graphical child incentive device



• Large 2000 patient test memory



• Optional Spirometry PC Software



• Internationally recognised on-screen test quality assurance prompts (e.g. slow start, abrupt end etc.) ensuring quality test results



• Unique ﾑtodayﾒs testing featureﾒ - creating a list of patients tested or to be tested



• Numerous predicted values and languages selectable



• 'Lung Age' assessment and textual result interpretation by ATS (9), BTS-NICE (10) or Enright (11)



• Body Mass Index and Dyspnoea Score



• Bronchodilator and/or Steroid assessment



• Complete with all accessories in a sturdy carrying case

*Specifications Spirometry Measurements (forced): VC, FEV.75, FEV1, FEV3, FEV6, FVC, PEF, FEV.75/VC, FEV.75/FVC,FEV1/VC, FEV1/FVC (FER), FEV3/VC, FEV3/FVC, FEV.75/FEV6, FEV1/FEV6, FEF25 (MEF75), FEF50 (MEF50), FEF75 (MEF25), FEF25-75 (MMEF), FEF50/VC, FEF50/FVC, MMEF/FVC (FEF25-75/FVC), FIV1, FIVC, PIF, FIV1/FIVC (FIR), FIF25 (MIF75), FIF50 (MIF50), FIF75 (MIF25), R50 (FEF50/FIF50), MET25-75, FET, MVV (ind) Measurements (relaxed): EVC, IVC, IC,VT (TV), ,Ti,Te,Ti/Ttot.,VT/Ti (TV/Ti), IRV, ERV, FR Tests per Subject: 5 relaxed VC manoeuvres and 8 forced manoeuvres for each baseline and two post examinations Predicted Values: Various - depends upon national preference (including NHANESIII) Transducer: Micro Medical Gold Standard Bi-Directional Digital Volume Resolution: 10ml volume 0.03l/s flow Accuracy: +/- 3% to ATS recommendations - Standardisation of Spirometry 1994 update for flows and volumes General Storage : 2000 patients with tests including Flow/Volume loops and Volume/Time graphs Printer Output: For the latest listing of compatible Hewlett Packard printers visit the Micro Medical (External Printers) website at www.micromedical.co.uk Printer Output: 13mm/s (avg) (Internal Printer) Power Supply: Input: 100-240V AC 50-60Hz Output: 12V 2.5A Battery Pack: Rechargeable NiMH 8.4V 1Ah Dimensions: 25.5cm x 12cm x 3.5cm Transducer 50 x 60 x 90mm Weight: Excluding any transducers : 630g Temperature: The instrument will operate in a uniform environment of 0ﾰC - 40ﾰC, out of direct sunlight Operating Humidity: 30-90% non-condensing. Storage Temperature: -200C to +700C Storage Humidity: 10% to 90% RH Connectivity: RS232 serial and USB 1.1 *SPC Software Features: * Can upgrade existing Spida and SpidaXpert databases to SPCS * Compatible with EMIS * Compatible with SystemOne * Clear graphic user interface * Clearer screen layout of results and graphs * Works on an individual patient basis - so the screens you see are specific to the patient being tested * Patient specific choice of predicted values * Results tables can be formatted to appear in the choice of the user * Predicted values, % predicted and z scores displayed * Powerful search facilities which allows filtering dependent on patient or groups the user is searching for * Batch printing options between specific dates * Increased export functions ﾖ to Pdf, MS Word, Excel, XML, *Min. PC requirements: * PC with Microsoft Windows 2000, Windows XP, Windows Vista * 129 MB RAM * 500 MB free hard disk space * * Free USB port for dongle protection key * Free USB port or serial port for Spirometry device** * Video: SVGA 1024 x 768, 256 Colour * Actual requirements will vary dependent on the amount of data to be acquired up to 2GB per database ** Port type required is dependent on spirometer in use. Refer to spirometer operating manual
